API 602 COMPACT
GLOBE VALVES

Small forged steel valves in Carbon, alloy, and stainless steel​

NPS 1/4"-2" (DN8-50), ASME CLASSES : 800Lb -1500Lb

​

ASTM Main Parts

Weixin Image_20250926171345_126_8.png

Figure 1 - Typical Outside Screw and Yoke Globe Valve

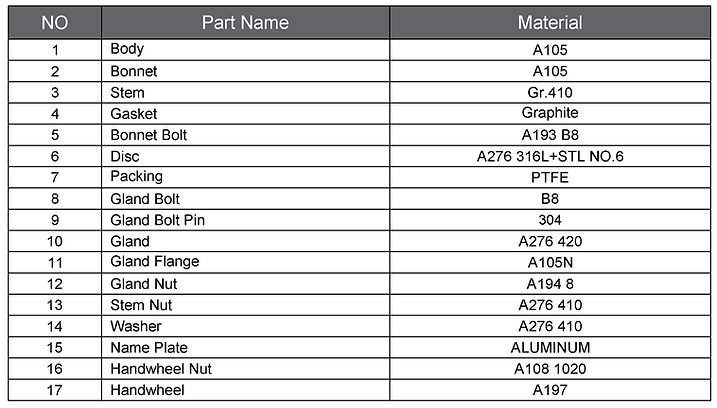

ASTM Main Parts and Materials


Note: Case hardened by nitriding to a thickness of 0.13 millimeters

TSC FORGED STEEL GLOBE VALVES

API 602 FORGED & CAST STEEL VALVES
ASME CLASS 800Lb ~1500Lb
DRILLED AND FACED AS FOLLOWS
ASME B 16.11 / B1.2 & ASME B 16.25
(Note: Dimensions are in inches and weights in pounds)​

BOLTED BONNET

WELDED BONNET

FLANGED BOLTED BONNET

BOLTED BONNET GATE DIMENSIONS


WELDED BONNET GATE DIMENSIONS
