JIS FORGED GLOBE VALVES

  • JIS F 7301 5K, STR

  • JIS F 7303 16K, STR

           ​​

​

JIS Main Parts


Figure- Forged Brass Globe valve.

JIS Main Parts and Materials


Note The above material can be manufactured in Bronze

TSC FORGED GLOBE VALVES

  • JIS F 7301 5K, STR ( Straight Type Valve )

  • JIS F 7303 16K, STR ( Straight Type Valve )


       DRILLED AND FACED AS FOLLOWS
       JIS B2002 & B 2210 / TEST JIS F 7400
      (Note: Dimensions are in mm and weights in Kgs)


Figure - Flanged 5K Globe valve

JIS B 7301, 5K DIMENSIONS

Unit :mm

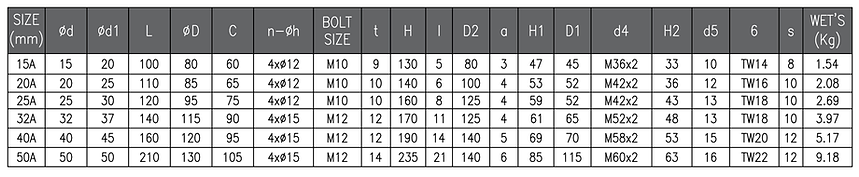

JIS B 7303, 16K DIMENSIONS

Unit :mm


Note

  1. Flanged shall be in accordance with the provisions of pressure 16K JIS B 2240.

  2. The screw in port d6 is applied to JIS B0222, & screws in ports d4 apply JIS B 0207.

  3. The drowing above is drawn at 1:1 scale for the 40A size.

산업 기계

1. API 598
