JIS FORGED ANGLE VALVES
-
JIS F 7352 5K, SDNR
-
JIS F 7410 16K, SDNR
JIS Main Parts
Figure- Forged Brass Angle valve.

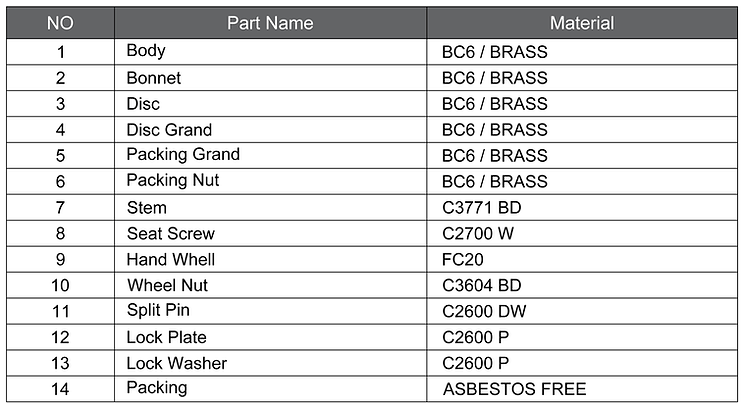

JIS Main Parts and Materials
Note The above material can be manufactured in Bronze
TSC FORGED ANGLE VALVES
-
JIS F 7352 5K, SDNR
-
JIS F 7410 16K, SDNR
DRILLED AND FACED AS FOLLOWS
JIS B2002 & B 2210 / TEST JIS F 7400
(Note: Dimensions are in mm and weights in Kgs)
Figure - Flanged 5K Angle valve
JIS B 7352, 5K DIMENSIONS
Unit :mm
JIS B 7410, 16K DIMENSIONS
Unit :mm
Note
-
Flanged shall be in accordance with the provisions of pressure 16K JIS B 2240.
-
The screw in port d6 is applied to JIS B0222, & screws in ports d4 apply JIS B 0207.
-
The drowing above is drawn at 1:1 scale for the 40A size.
