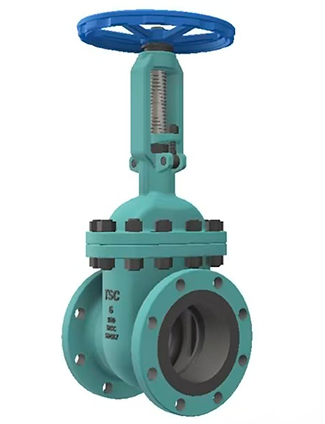

API 600 WEDGE GATES

Bolted Bonnet Steel Gate Valves for Petroleum and Natural Gas Industries

NPS 2"-36" (DN50-900), ASME CLASSES : 150Lb, 300Lb

ASTM Main Parts

ASTM Main Parts and Materials

NOTE: 1) Other materials available
2) Hard faced 3) Hardened.
4) For eye bolts Gr.B, for studs B7 is used.
5) For eye bolts F316, for studs B8M is used.

FLANGED, WEIGHT & Cv FLOW CONFICIENTS

API 600 CAST STEEL VALVES
CLASS 150Lb ~300Lb
DRILLED AND FACED AS FOLLOWS
ASME B 16.5 & ASME B 16.47
(Note: Dimensions are in inches and weights in pounds)

Gate Valve Dimensions

NOTE:

(1) NPS 26 (DN 650) and up : asme b16.47 Series A (MSS-SP-44). For Series B (API 605) contact the factory.
